Scripting

The two main ways of writing game logic is either in custom C++ modules or through scripting. C++ is more suitable for computationally heavy tasks while scripting is an easy way of iterating quickly.

To add a script asset to an entity in your scene, see the: Assets documentation

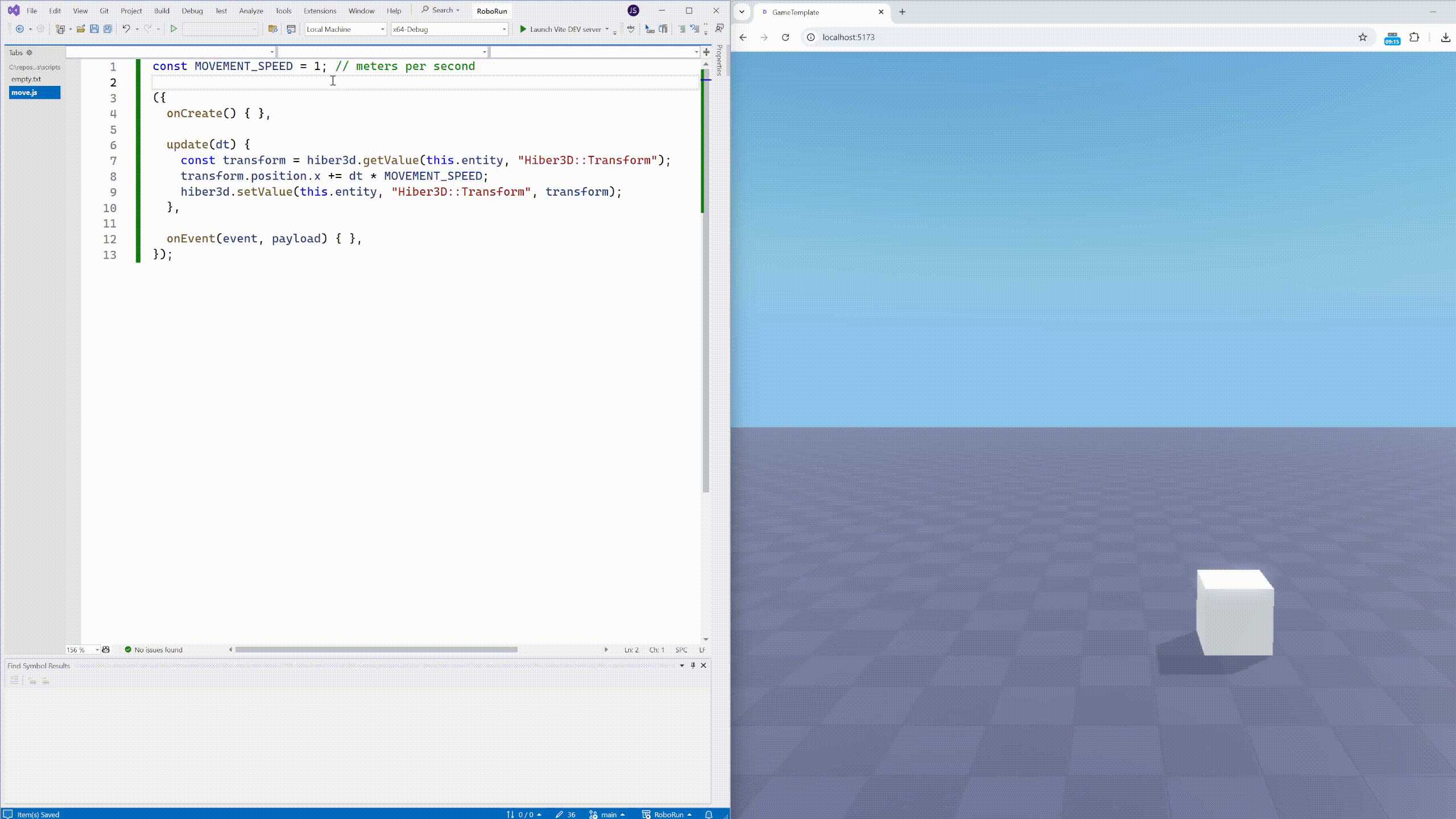

Hot reload

As with all assets, changes saved to script files are hot reloaded. Any change to a script, even when live testing on your phone using the built-in QR code hosting, will be instantly reflected.

Language support

Currently, Hiber3D supports JavaScript as the primary scripting language. Additionally, Lua scripting is available as an experimental option.

Script template

The easiest way to begin scripting is to, from inside the editor, create a new .js script file. This is done by right clicking inside the assets panel, then pressing New File..., and naming the new file with the .js extension. This new file will automatically include both a template of the default script functions and some brief documentation on the basic scripting API.

Default script functions

When creating a new .js file, you will get the following default script structure. Note that scripts only run while in play mode.

({
    onCreate() {
    },

    update(deltaTime) {
    },

    onEvent(event, payload) {
    }
});

onCreate()

This function runs only once, when the script is initialized.

update(deltaTime)

This functions runs once every tick. The deltatime number is the time in seconds elapsed during the previous tick.

onEvent(event, payload)

This function runs once for each subscribed to event. The event string is the name of the event that just fired. payload is an object containing the members of the event. See: “Event management” further down this page and C++ Modules - C++ registration

Hiber3D API

Here are some commonly used Hiber3D functions:

Print to console

hiber3d.print(...) // use JSON.stringify for object

Entity management

const newEntity = hiber3d.createEntity()
hiber3d.destroyEntity(entity)

Script management

hiber3d.addScript(entity, "path/to/script.js")
hiber3d.removeScript(entity, "path/to/script.js")
hiber3d.hasScript(entity, "path/to/script.js")
const script = hiber3d.getScript(entity, "path/to/script.js")
script.someField = 2;

Component management

hiber3d.addComponent(this.entity, "Hiber3D::Transform")
hiber3d.removeComponent(this.entity, "Hiber3D::Transform")
hiber3d.hasComponents(this.entity, "Hiber3D::Transform", "Hiber3D::Renderable")
hiber3d.findEntitiesWithComponent("Hiber3D::Transform")
hiber3d.setValue(this.entity, "Hiber3D::Transform", "position", "x", 1)
const transform = hiber3d.getValue(this.entity, "Hiber3D::Transform")

Singleton management

hiber3d.setValue("Hiber3D::ActiveCamera", "position", {x:1, y:2, z:3})
const position = hiber3d.getValue("Hiber3D::ActiveCamera", "position")

Call C++ functions

hiber3d.call("myFunction", 1)

See: C++ Modules - C++ registration

Input management

hiber3d.call("keyIsPressed", 1)
hiber3d.call("keyJustPressed", 1)
hiber3d.call("keyJustReleased", 1)

Note: Find key codes in \<Hiber3D/Core/KeyEvent.hpp\>

Event management

hiber3d.addEventListener(this.entity, "EventName") // done in onCreate()
hiber3d.writeEvent("EventName", {});
